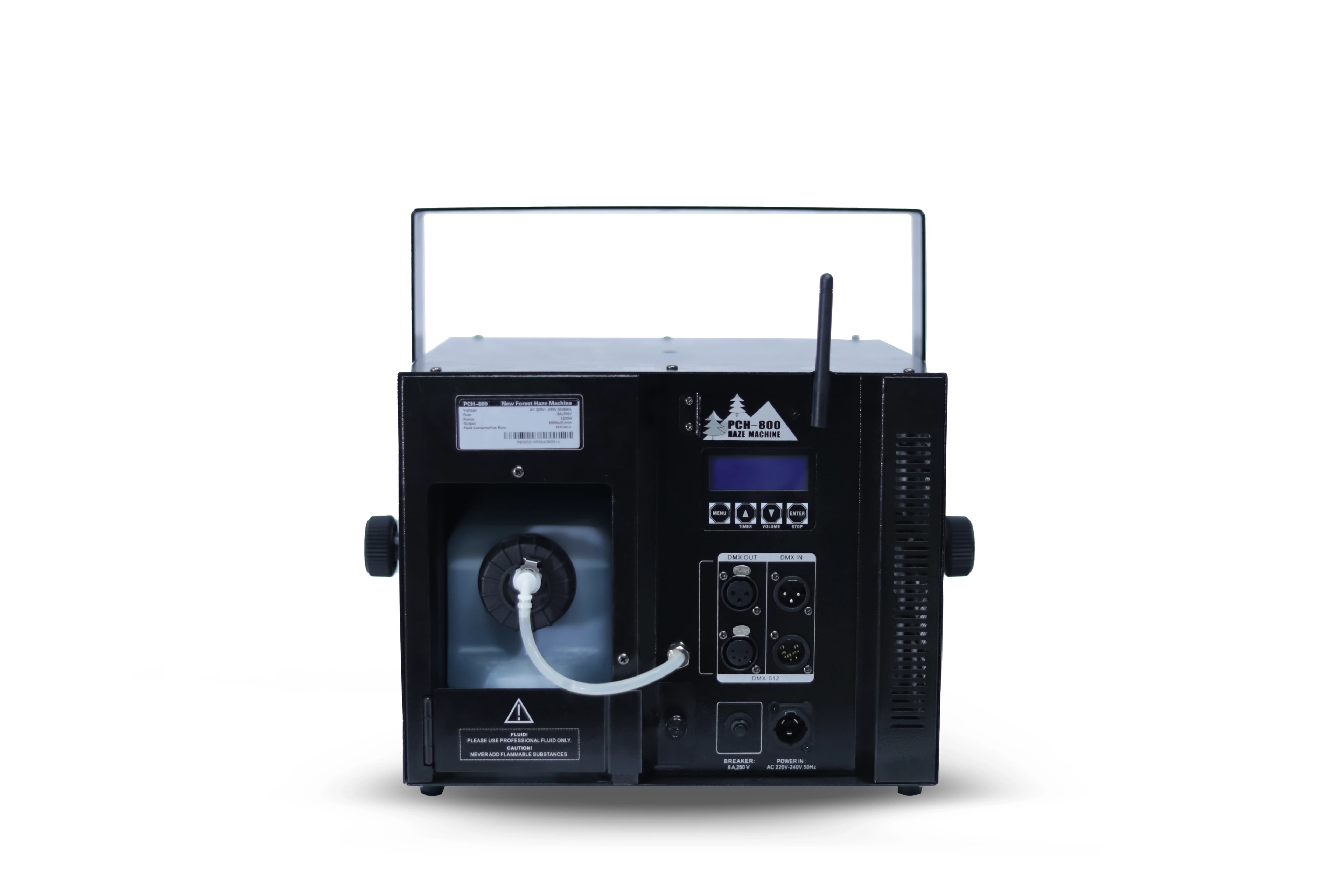

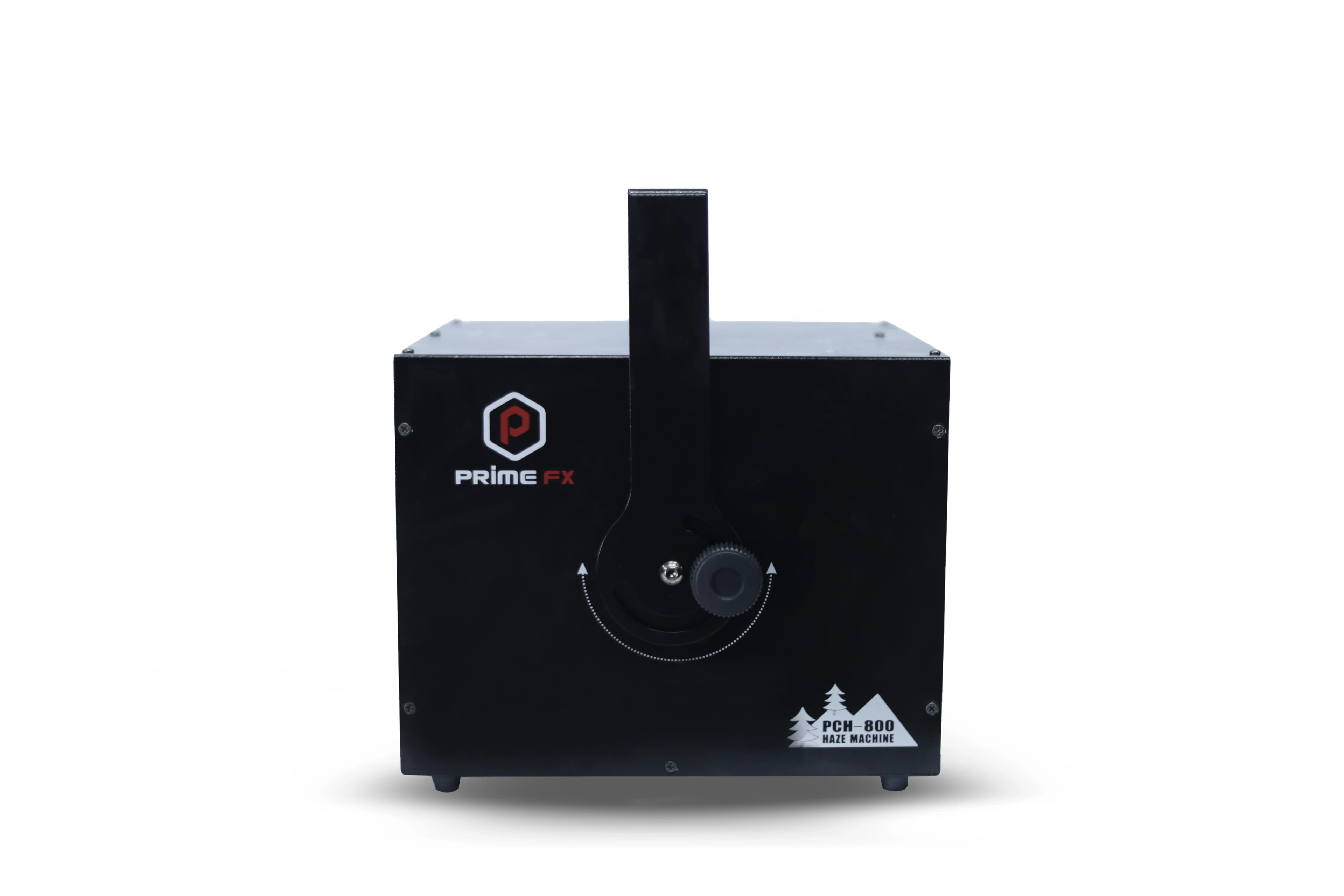

PCH-800 - Compact Haze for Crisp Light BeamsPCH-800 - Compact Haze for Crisp Light Beams
Fine, even haze output to enhance lasers, lights, and visuals.The PrimeFX Mini brings professional-grade effects to small gatherings and personal events in an ultra-compact package.
Engineered for Excellence
.webp&w=3840&q=75)
.webp&w=3840&q=75)
See It In Action
Experience the power of the PCH-800 in real-world applications.
Technical Specifications
Power & Electrical
- Input Voltage: AC 220-240 V, 50/60 Hz
- Total Power Consumption: 1200 W
- Operating Current: 5.2 A
- Connector: IEC Power Input
- Fuse Rating: 8 A, 250 V
Heating System
- Heater Type: Fast Coil Heater
- Heat-Up Time: Approx. 50 sec
Tank & Fluid
- Tank Capacity: 3 L
- Compatible Fluids: PRO-C / PRO-J
Output
- Max Output Volume: Approx. 6,000 cuft/min
- Fluid Consumption: Approx. 8.0 ml/min
- Fully Loaded Runtime @ Full Volume: Approx. 437 min
- Output Adjustment: 1-100% with fan speed control
Control
- Manual: LCD Control Board
- Wireless: Built-in RF 433MHz (W-4)
- DMX512: 3-pin & 5-pin, 2 DMX Channels
Features
- Aerodynamic fog dispersion (no fan required)
- Rotational molded composite body
- Low water and overheat protection
- Clear water level display
- Multi-level output control
- Anti-drip water outlet
Weight & Dimensions
- Net Weight: 11 kg
- Gross Weight: 13 kg
- Machine Size: 313 x 310 x 255 mm
- Packing Size: 445 x 445 x 410 mm
