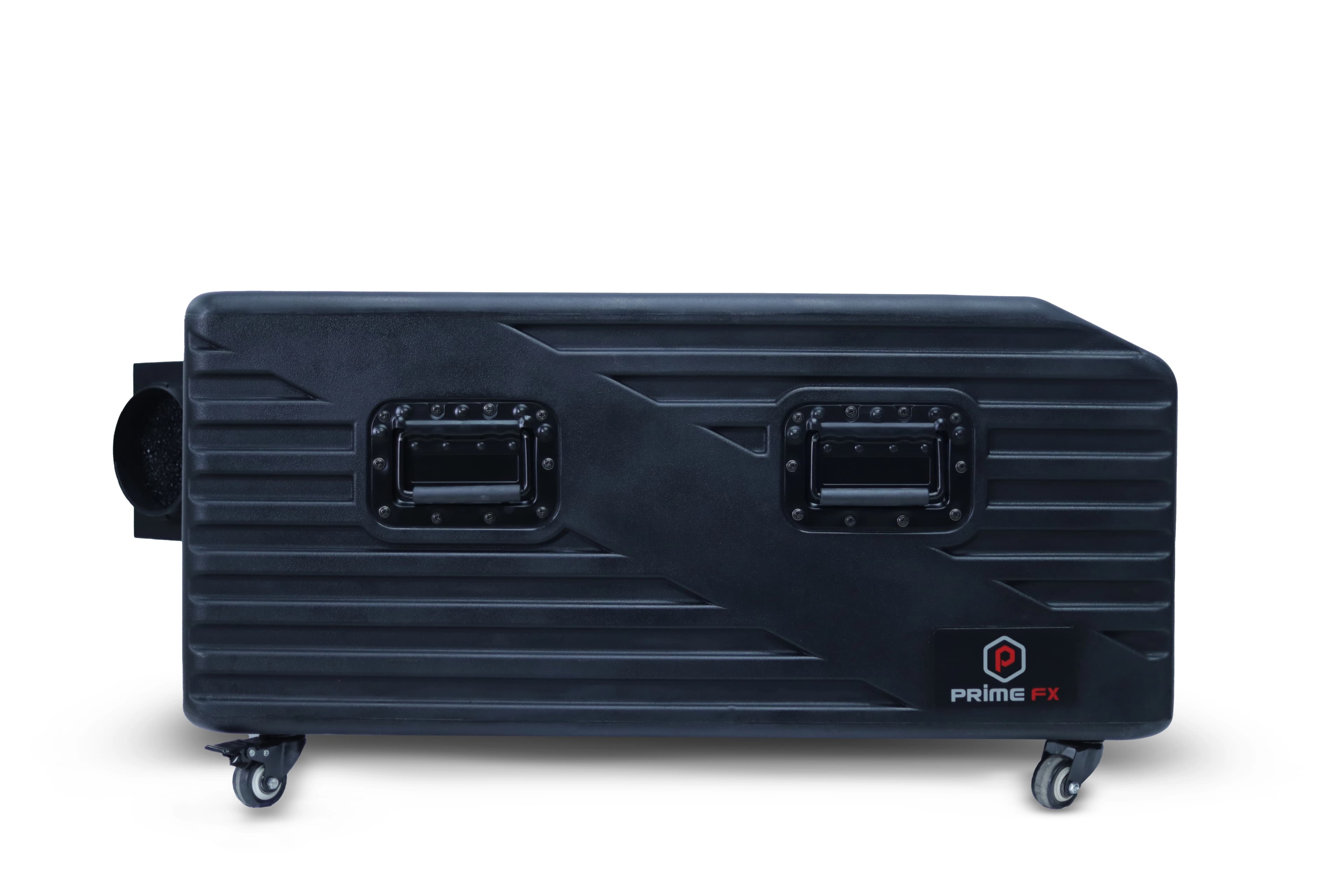

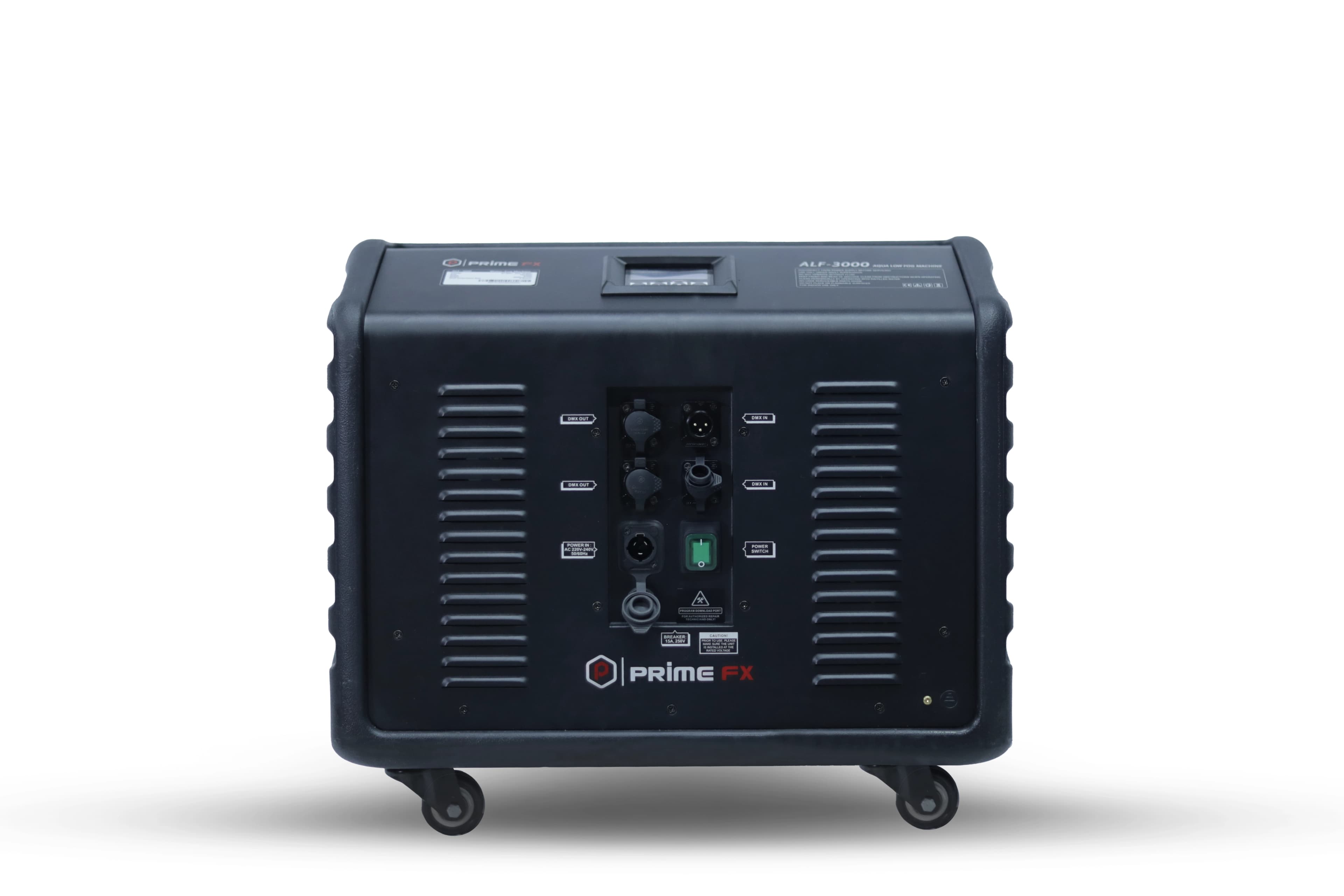

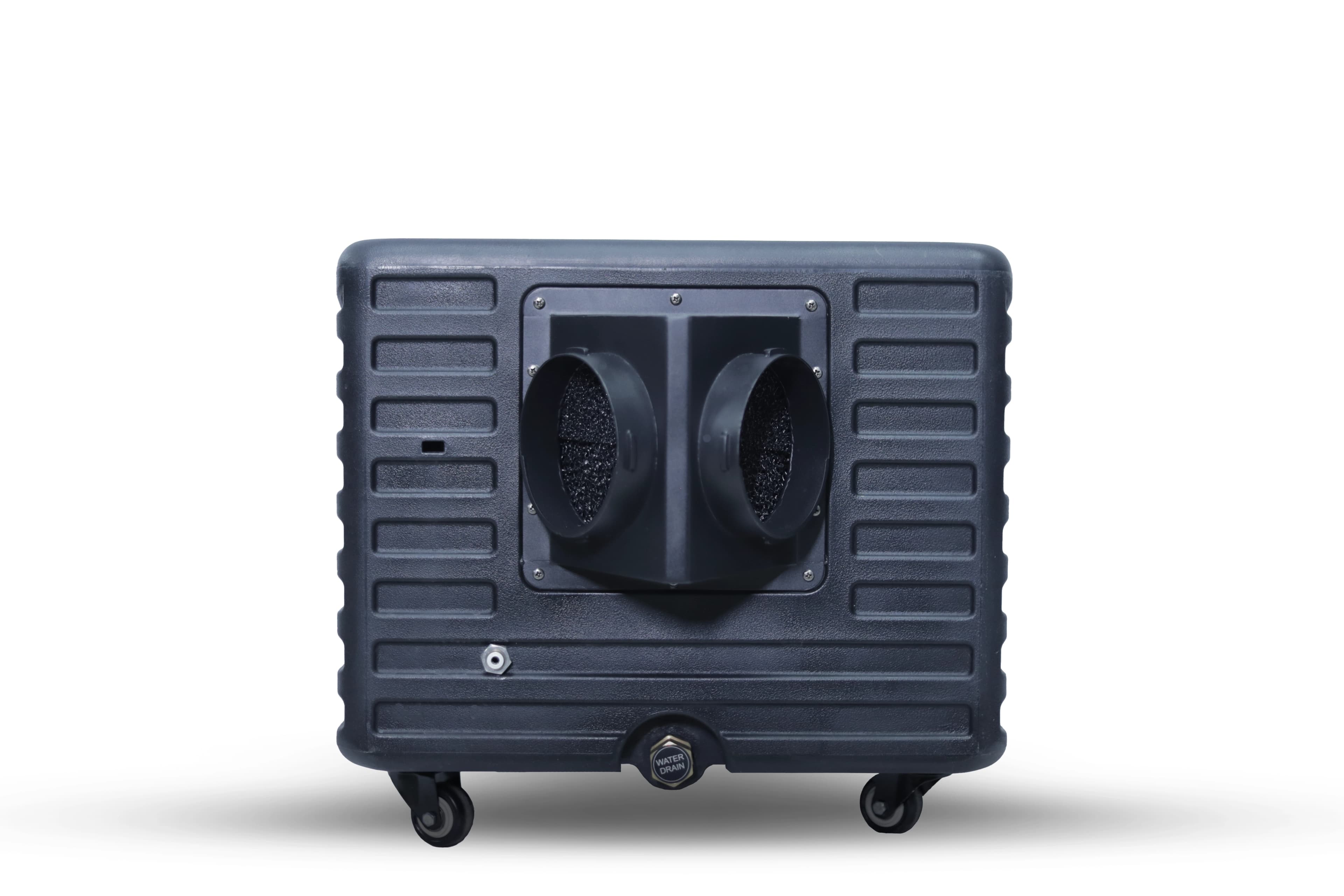

ALF-3000 – Floor-Hugging Fog That Flows Like WaterALF-3000 – Floor-Hugging Fog That Flows Like Water
High-output low fog machine for elegant, dry ice-style ground effectsOur flagship special effects machine
Engineered for Excellence
.webp&w=3840&q=75)
.webp&w=3840&q=75)
See It In Action
Experience the power of the ALF-3000 in real-world applications.
Technical Specifications
Power & Electrical
- Input Voltage: 220-240V, 50/60 Hz
- Total Power Consumption: 2700W
- Operating Current: 11.7A
- Current Limiter: Breaker (15A, 250V)
- Power Connector: Lockable PowerCon IP65
- Daisy-Chain Power Output: Yes (Lockable PowerCon IP65)
Heating System
- Heat-Up Time: Approx. 4-5 min
- Heater Type: Aluminum Heater Block
Atomizer System
- Total Power: 1200W
- Atomizer Units: 4 pcs (300W each)
Capacity
- Fog Fluid Tank: 3.5L
- Water Chamber: 34L
Fog Output
- Max Output: Approx. 20,000 cu.ft/min
- Coverage: Up to 400 m²
- Fluid Consumption: ~34.7 mL/min @ full volume
- Water Consumption: ~480 mL/min
- Max Cumulative Output: ~100 minutes
- Output Volume Range: 1-100%
Control & Interface
- Manual Control: Built-in LCD
- DMX Control: 3 channels, 3-pin & 5-pin XLR
- Wireless Control: Optional
Safety & Features
- Adjustable Output & Fan Speed
- No-Fluid Protection
- No-Water Protection
- Physical Thermostat & Electronic Thermo-Control
- Anti-Loose Power Plug
- Integrated drain holes
Build & Accessories
- Dimensions: 885 x 500 x 455 mm
- Weight: 46 kg (Net), 52.5 kg (Gross)
- Includes: 2x 3m Hoses (125mm), Nozzle, Flight Case, Power Cord
Compatible Fluids
- PRO-SW / PRO-A / PRO-D + Water
- PRO-V recommended for quick-dissipating effects
