PrimeFX - Special Effects Solutions

Engineered for Excellence

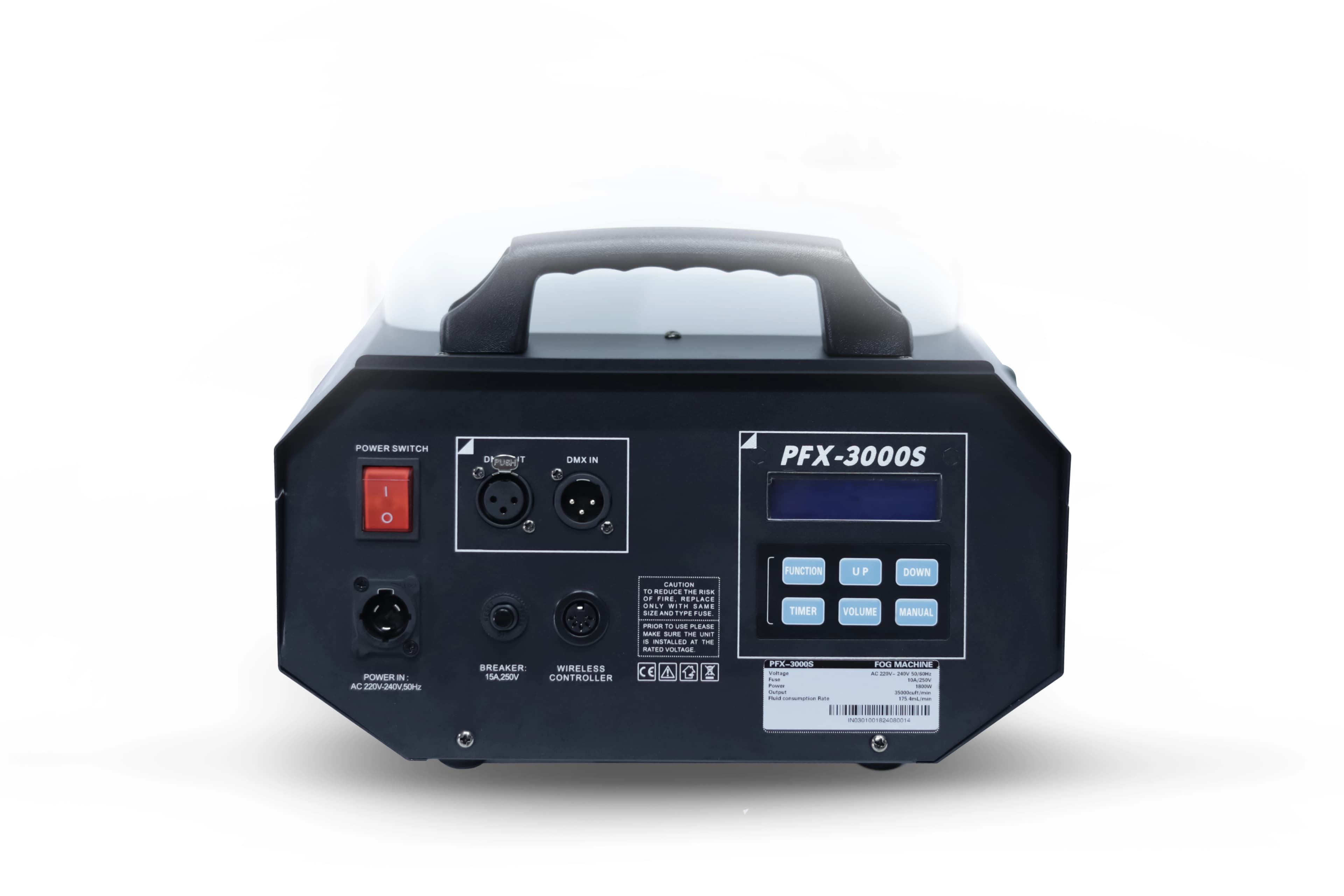

PFX-3000S - Heavy-Duty Fog Machine for Maximum Atmosphere - Image 1

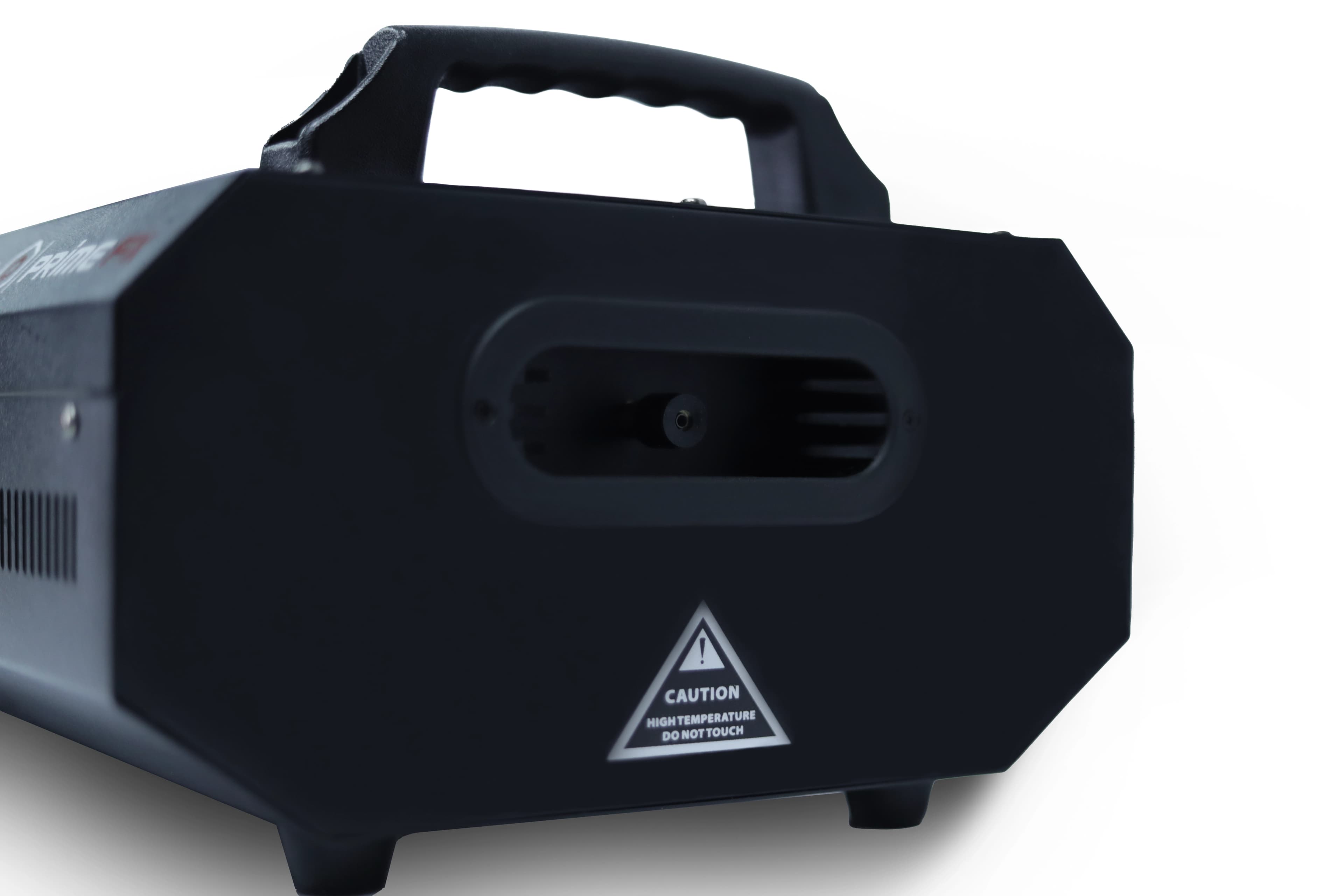

PFX-3000S - Heavy-Duty Fog Machine for Maximum Atmosphere - Image 2

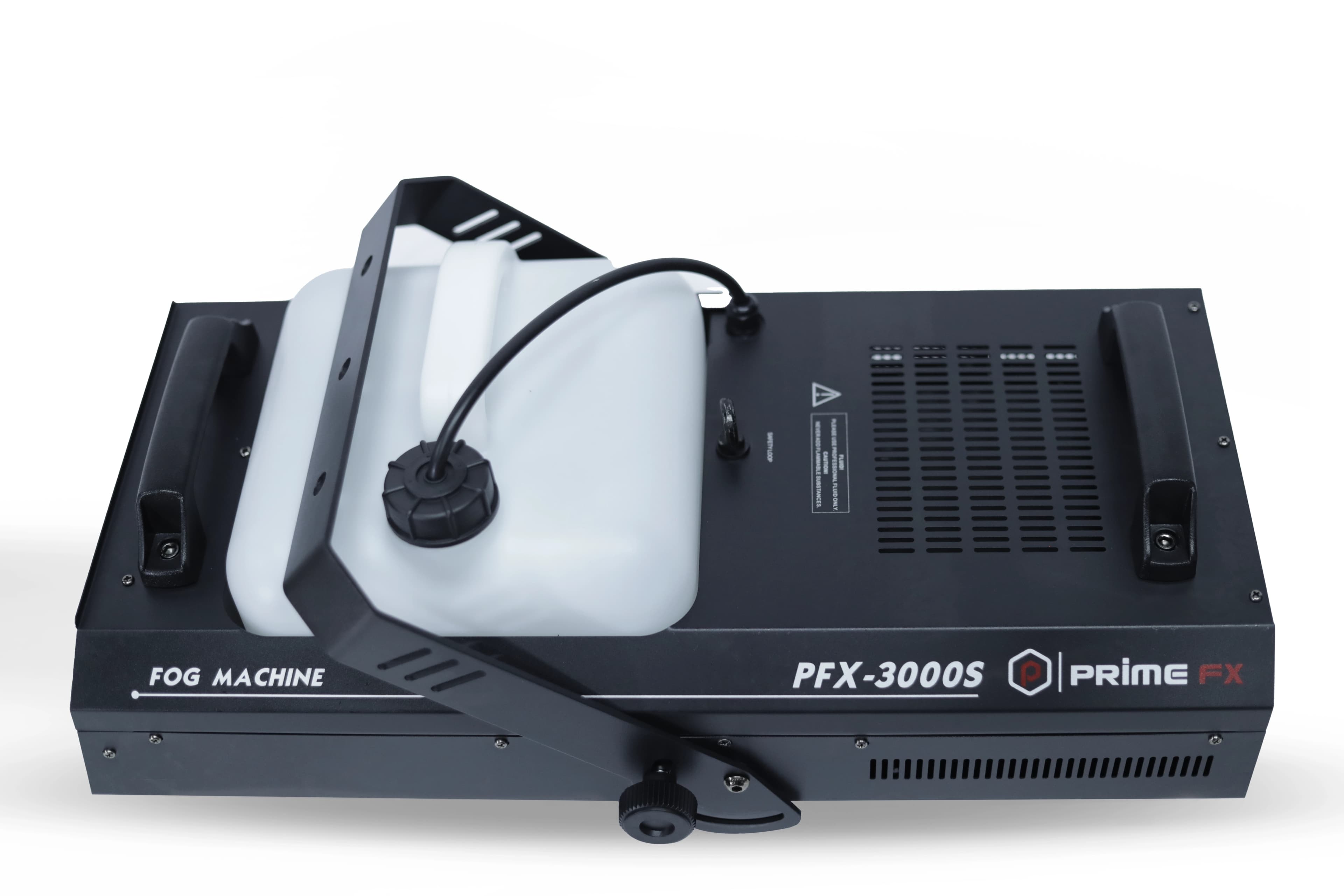

PFX-3000S - Heavy-Duty Fog Machine for Maximum Atmosphere - Image 3

See It In Action

Experience the power of the PFX-3000S in real-world applications.

Technical Specifications

Power & Electrical

Input Voltage: AC 220-240 V, 50/60 Hz
Total Power Consumption: 1800 W
Operating Current: 7.8 A
Power Input Connector: Hard-wired
Breaker Rating: 10 A, 250 V

Heating System

Heater Type: Aluminium Heater Block
Heat-Up Time: Approx. 5 min

Tank & Fluid

Tank Capacity: 9 L
Compatible Fluids: DJV-001, D-01, D-03 Fog Fluid

Output

Max Fog Output: Approx. 35,000 cuft/min
Output Distance: Up to 8 meters
Adjustable Output: 1-100%
Fluid Consumption @ Full Output: Approx. 5.7 min/L
Max Continuous Output Duration: Approx. 20 sec
Cumulative Runtime (Full Volume): Approx. 51 min

Control

Manual: LCD Control Board
Wireless: W-2 / RF 315MHz (External Receiver)
DMX512: 1 Channel, 3-pin XLR
Wired Control: Optional

Features

Aerodynamic fog dispersion (no fan required)
Rotational molded composite body
Low water and overheat protection
Clear water level display
Multi-level output control
Anti-drip water outlet

Weight & Dimensions

Net Weight: 14 kg
Gross Weight: 16 kg
Machine Size: 638 x 359 x 275 mm
Packing Size: 700 x 375 x 335 mm
