PrimeFX - Special Effects Solutions

Engineered for Excellence

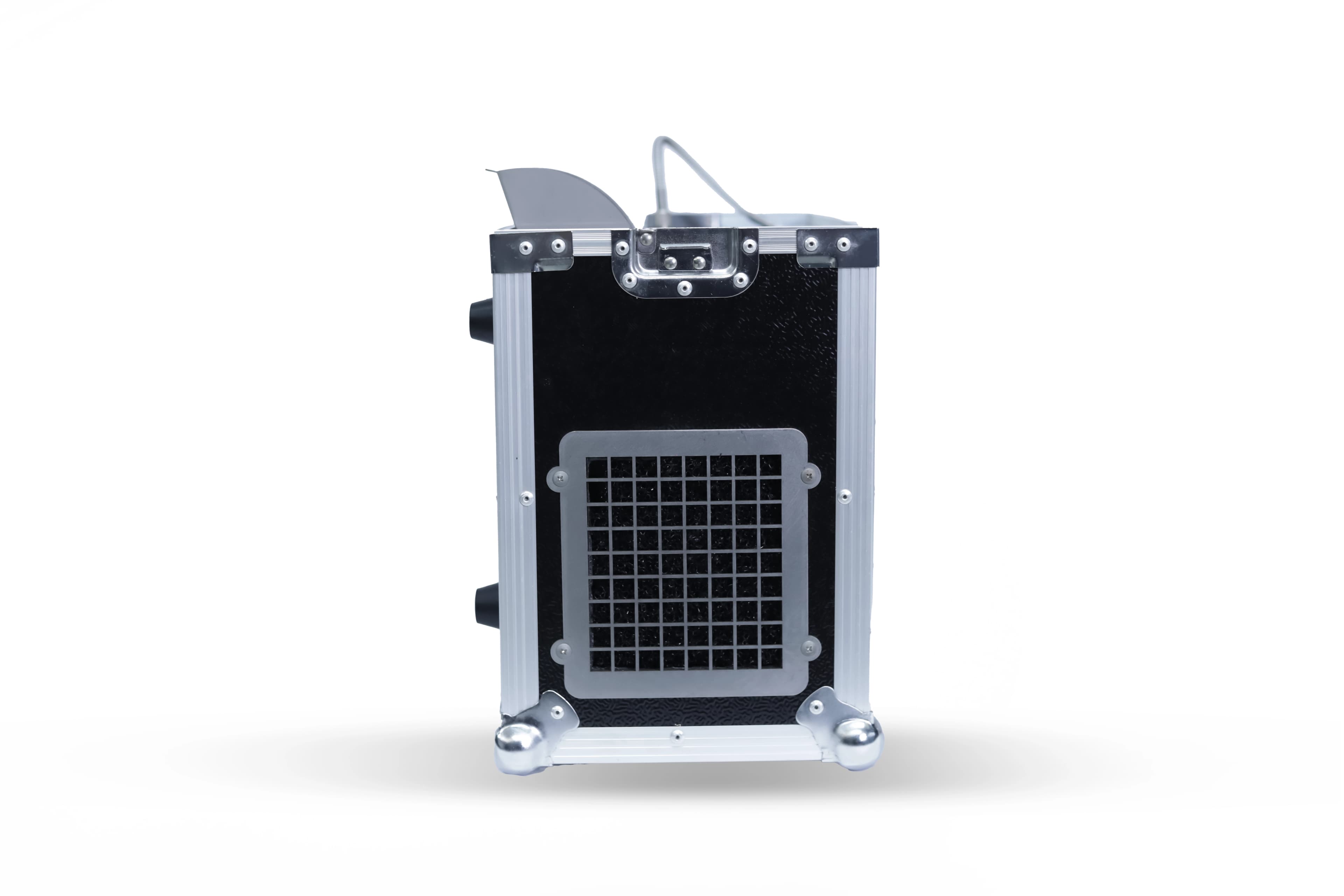

PH-3 - Pro-Grade Haze for Cinematic Visuals - Image 1

PH-3 - Pro-Grade Haze for Cinematic Visuals - Image 2

See It In Action

Experience the power of the PH3 in real-world applications.

Technical Specifications

Power & Electrical

Input Voltage: 220-240V, 50/60 Hz
Total Power Consumption: 1500W
Operating Current: 6.5A
Current Limiter: Breaker (8A, 250V)
Power Connector: Lockable PowerCon

Heating System

Heat-Up Time: Approx. 4 min
Heater Type: Aluminum Heater Block

LED System

LED Type: RGB (Single Color)
LED Power: 3W per LED
Total LEDs: 32 pcs (96W)
Inner LEDs: 9 pcs (27W)
Outer LEDs: 23 pcs (69W)

Capacity

Fog Fluid Tank: 2.5L

Fog Output

Max Output: Approx. 32,000 cu.ft/min
Output Height: Approx. 6-8 meters
Fluid Consumption: ~6.3 min/L @ full volume
Max Continuous Output Duration: 7 sec
Cumulative Output Duration: ~15 min

Control & Interface

Manual Control: 7-segment digital display
Wireless Control: Built-in RF 433MHz (W-5)
DMX: 11 channels, 3-pin & 5-pin XLR

Safety & Features

No-Fluid Protection
Instant Stop Function
Adjustable Output
Inner Flame Color Changing” (IFCC) Tech
Anti-Squirting Plus System
Anti-Loose Power Plug
Overheat Protection (Electronic & Physical Thermostats)
MIRRIOR-patented heater (anti-clogging)

Build & Accessories

Dimensions: 417 x 382 x 205 mm
Weight: 10 kg (Net), 11 kg (Gross)
Included: Power Cord, Wireless Controller (W-5)
